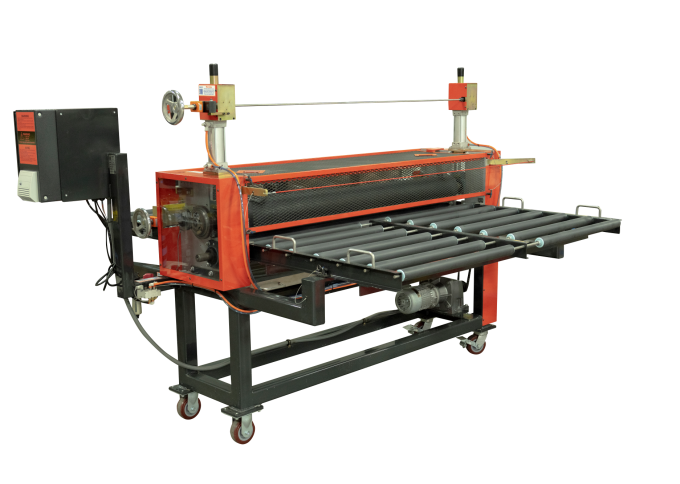

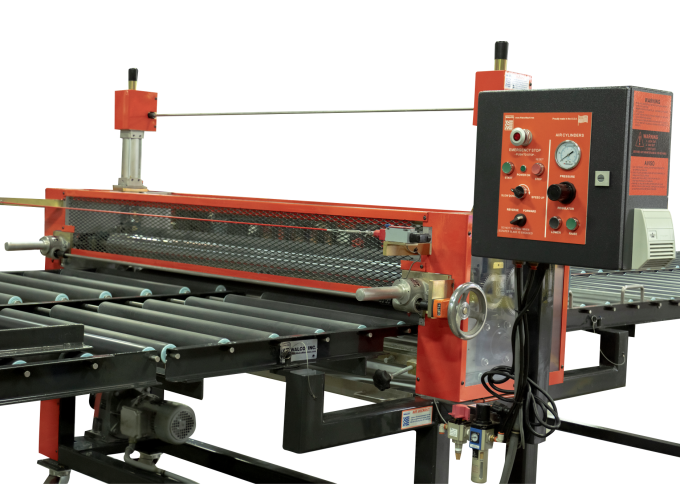

Walco 67A

The Walco 67A is an Automated Roller Coater for medium or heavy-duty liquid coating with large rolls and other components for higher production rates.

It applies virtually any liquid coating to the top and/or bottom of clean, flat and dry sheet stock, sheet metal, glass, wood, plastic, acrylic, wovens and non-wovens.

Walco systems and machines are built-to-order, ranging from simple to complex: depending upon your unique production, safety and operational requirements.

Standard configuration

Welded tubular steel frame construction
4" to 6" (152 mm) driven coating rolls;
Tubular, welded steel, powder-coated frame.
One side coating

Mains options

Double side coating
UV-cured coatings to the top and/or bottom of clean
Powered Infeed and Outfeed Conveyors;
Safety Air Cylinders – automatically opening the nip in the event of an emergency;
Coating and nip Adjustment;
Scraper Blade – keeping the bottom drive roll clean;
Anti-wrap Air knives – used to keep thin substrates or webs moving downstream;
Automatic Coating Fill – automatically keeps your coating liquid filled at the crotch;
PLC / HMI automation;
External Safety walls and/or light curtains.
